Leadshine Drive Wood Router Machine Height 300mm Cnc Carving Machine

MOQ : 1

Price : USD 2800-2200

Payment Terms : T/T

Supply Ability : 100sets/Month

Delivery Time : 30-45days

Packaging Details : Carton/Wooden case

Model NO. : QL-6090

Customized : Non-Customized

Condition : New

Color : Customized

Z Working Area : 600mm-1000mm

X. Y Working Area : 3000*1200mm

Working Delicacy : 0.005mm

Repositioning Accuracy : 0.05mm

Surroundings for Software : Windows98/2000/XP

Transport Package : Package

Specification : CE

Trademark : G&G

Origin : China

HS Code : 8458910000

Type : Wooden Mold Router

Spindle Layout : Spindle Underneath

Spindle Number : Double-Spindle

Feed Mode : Manual

Controlling Mode : CNC

Certification : CE, ISO

Place of Origin : China

Contact Now

Stone/ Metal /Wood Multi Tool Position CNC Router Machine

Company Info.

Basic Info.

Model NO.

QL-6090

Customized

Non-Customized

Condition

New

Color

Customized

Z Working Area

600mm-1000mm

X. Y Working Area

3000*1200mm

Working Delicacy

0.005mm

Repositioning Accuracy

0.05mm

Surroundings for Software

Windows98/2000/XP

Transport Package

Package

Specification

Trademark

G&G

Origin

China

HS Code

8458910000

Production Capacity

100sets/Month

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T

Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: QL-3012
Voltage: 220V
Power(W): 1500W
Certification: CE
Warranty: 1year
After-sales Service Provided: Overseas third-party support available

Packaging & Delivery
Delivery Detail: 30-45days
Leadshine Drive Wood Router Machine Height 300mm Cnc Carving Machine

Leadshine Drive Wood Router Machine Height 300mm Cnc Carving Machine

Specifications:

Model		Standard
Working size		600900300mm
Machine body		All cast aluminum

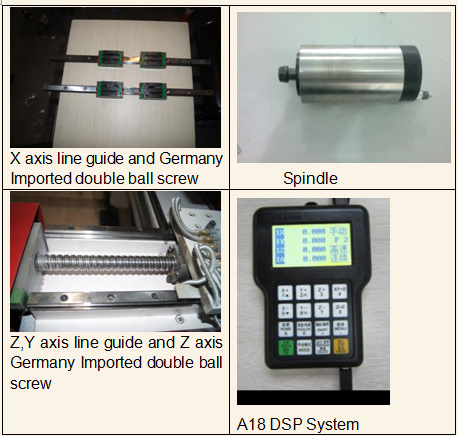

Transmission system	X.Z	Taiwan Hiwin Square guide,Germany Imported double ball screw - driving
	Y	Taiwan Hiwin Square guide, Germany Imported double ball screw - driving
	A	4 PCS Axis of rotation 500*800area

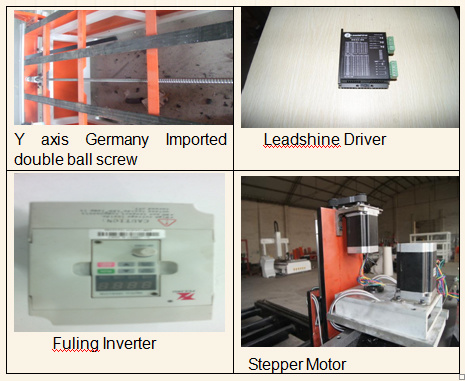

Drive system Drive systems	X.Y.Z.A	Step motor , Leadshine drive
Spindle	Power	1.5KW water cooling spindle 4 PCS
	Inverter	Fuling
	Collet diameter	Ø3.175-Ø6
Control System		DSP A18
Working Voltage		AC220V±30V, 50HZ
Command Code		G Code, .mmg, .plt, *.eng
Tool sensor system		Available
Compatible Software		Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad
Packing type		Fumigation-Free Wooden Case
Overall Dimension		13009501250mm
Gross Weight		250kg
